Backup Cam w/ OnStar® Mirror, Temp and Compass, Fits 99-07 (classic) Silverado, Sierra
SKU#: CS-GMTRCL-356T
Availability:
In Stock
SKU#:
CS-GMTRCL-356T
$564.00
Quantity
OEM style solution for your classic truck!
Description
Premium camera kit that includes OnStar® mirror with compass and temp in the upper right corner and 4.3" video monitor! Camera will also allow you to see the rear bumper and trailer hitch for easy connections - even at night!
Finally a backup camera kit for your classic body style Chevy® or GMC® pickup truck! We take a high quality camera and couple it to a custom bracket for a simple bolt on solution. This kit comes with everything you need as a complete kit!

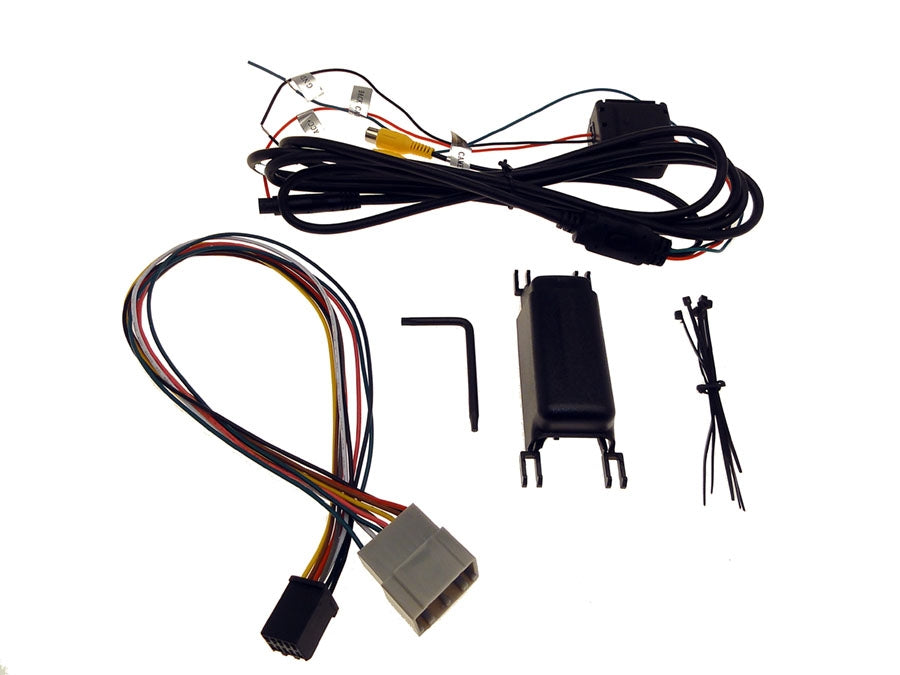

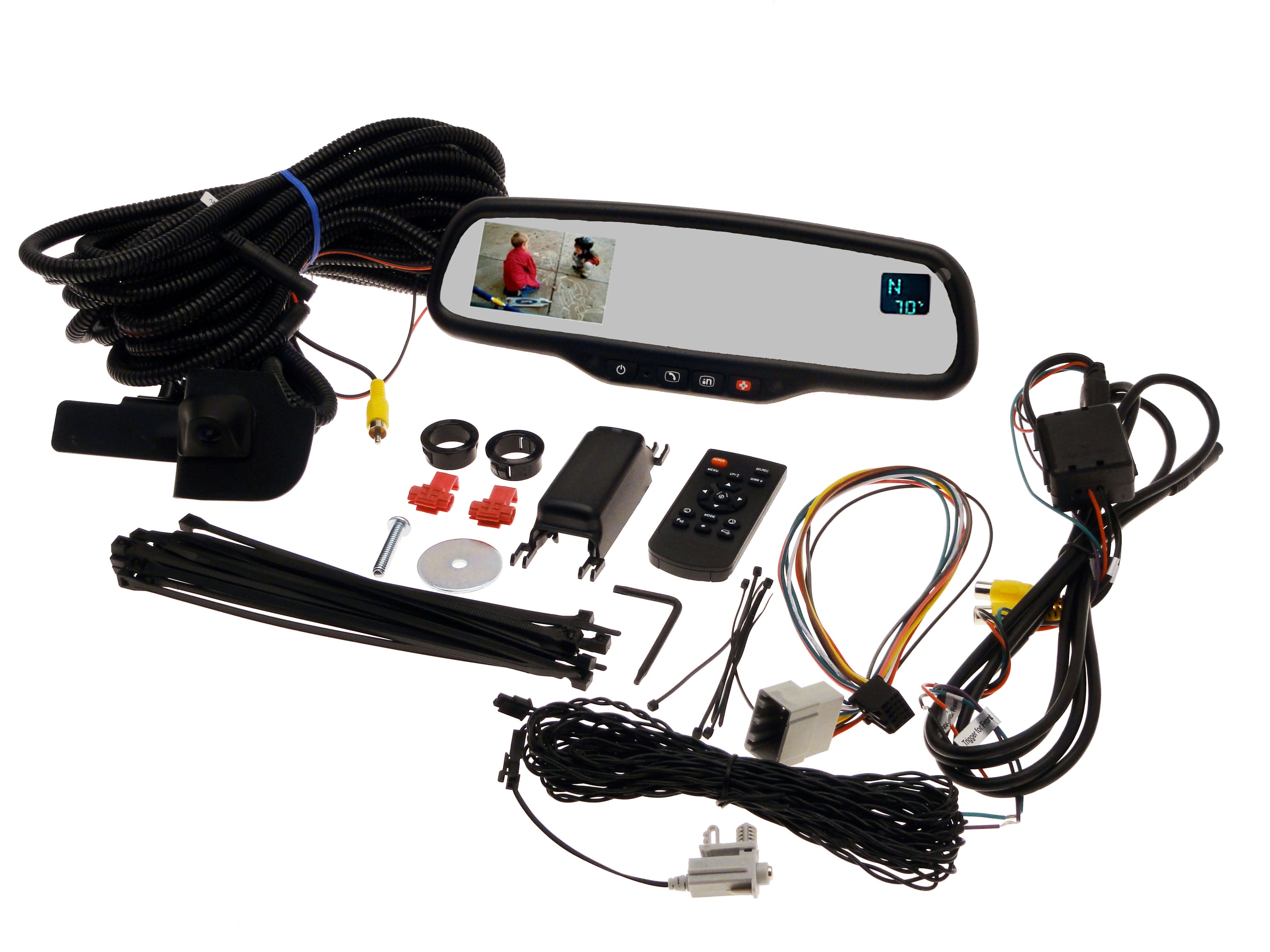

This package contains:

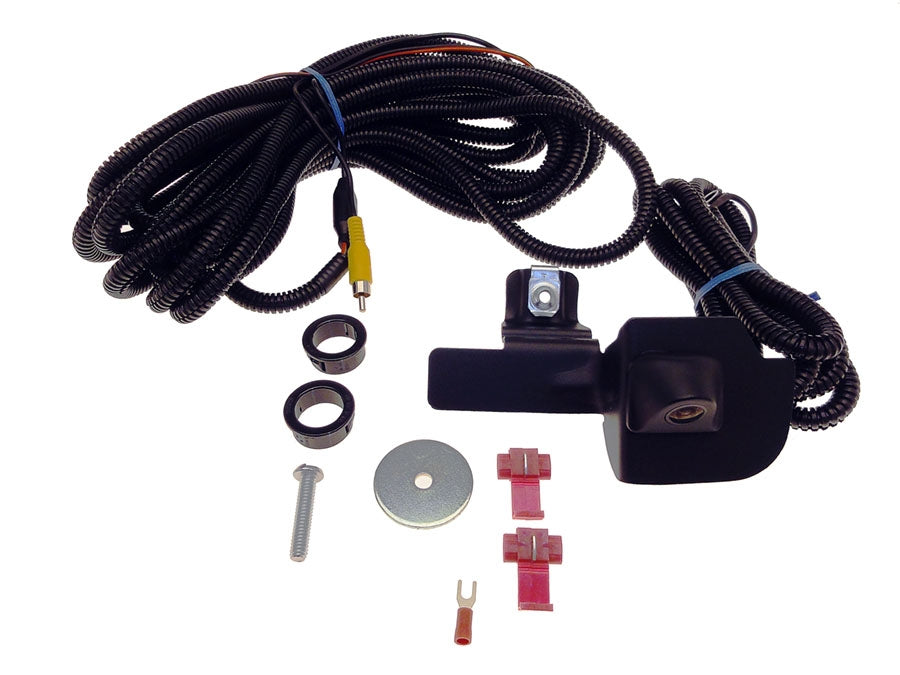

- Premium night vision camera, mounted in a custom bracket for a simple bolt on solution.
- 25' pre-loomed wiring harness - allows for quick tailgate disconnect with a single connection by the spare tire area. All other electrical connections can be made inside the cab for maximum durability and corrosion avoidance!
- Wire connectors
- 1" plastic snap bushings - for cable passage in the bottom of the tailgate and back of the box
- Detailed installation instructions
- 3-Year camera warranty!

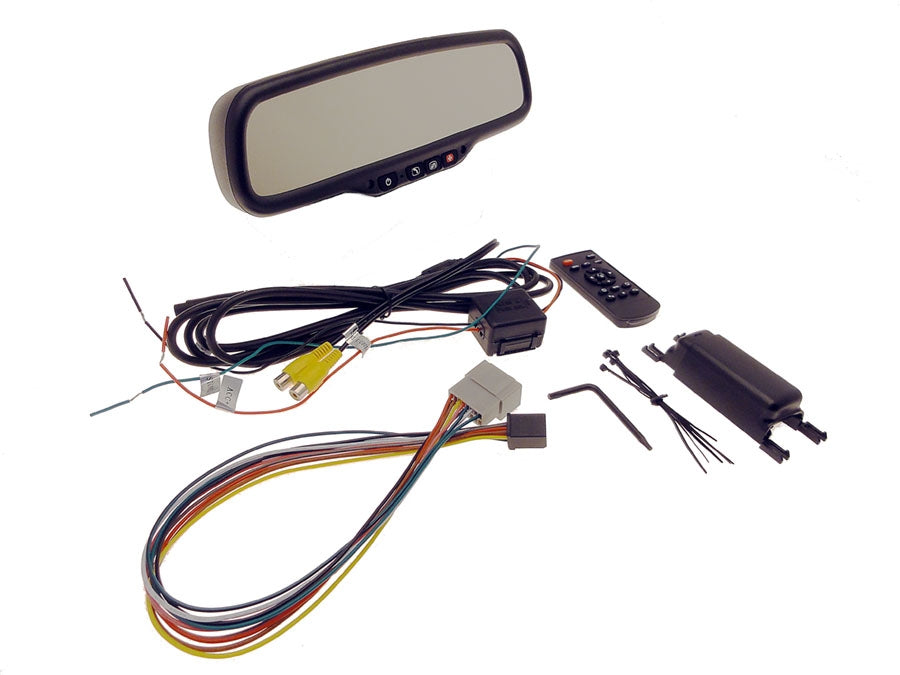

This kit also contains a replacement OnStar® mirror:
- A replacement for your vehicle's factory original mirror
- Includes compass/temperature display in upper right corner of mirror
- No loss of features in your current auto-dimming mirror with OnStar® buttons
- Large 4.3 color backup monitor displays vividly when you put your car in reverse
- Compatible with all standard backup cameras through the included installation harness

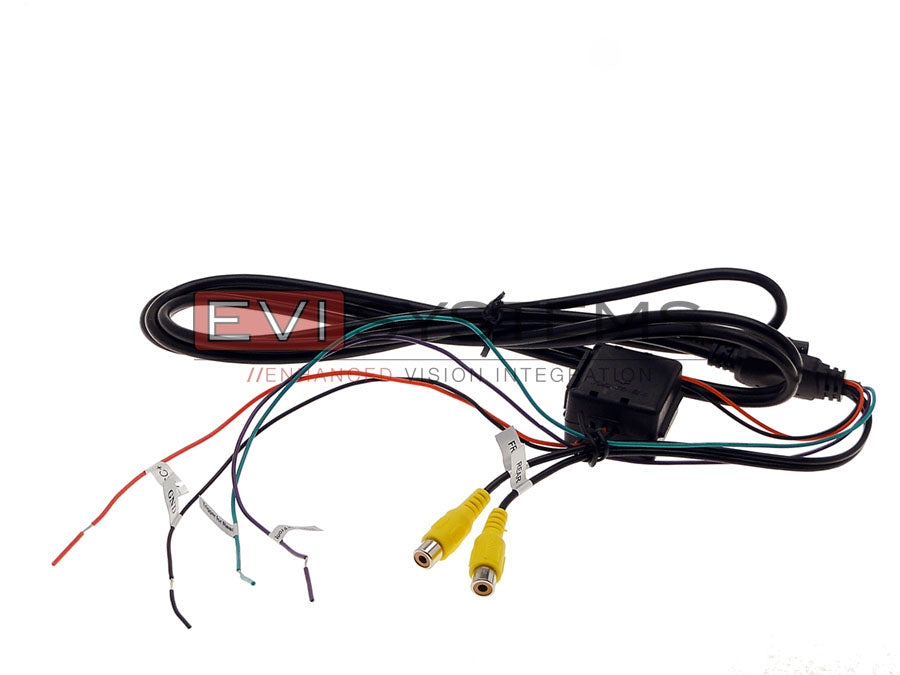

- Includes harness with RCA input
- Includes temperature sensor probe and harness
- Installation requires locating power and ground on vehicle for new mirror
- Increased vehicle resale value
- One year warranty

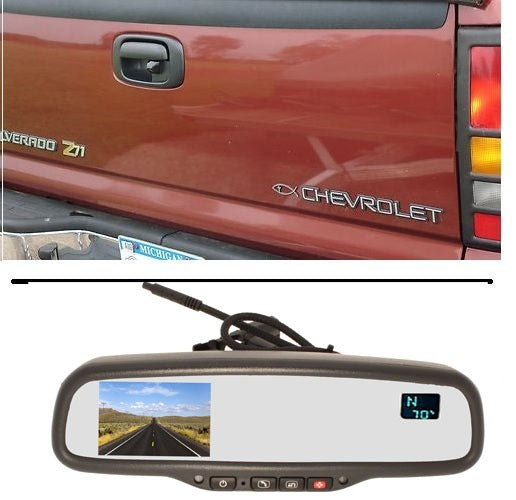

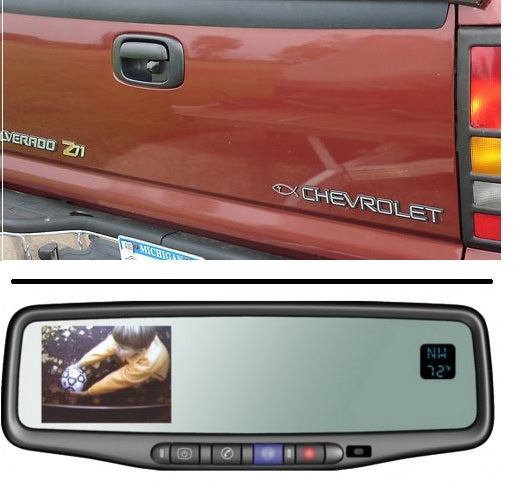

Additional Information: This assembly and camera will mount inside your existing tailgate handle bezel. The mirror will replace your factory mirror - all the wiring is included! This is a great way to add the safety and convenience of a backup camera!
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Packaged w/Rear view mirror display |
| Connection | Rearview Mirror |
| Make | Chevrolet,GMC |
| Mirror Mount | Wedge Style |
| Mirror Options | Auto Dim, Video, OnStar, Compass, Temp Display |
| Monitor Size | 4.3" |
| Camera Mount Location | Factory Tailgate |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Rearview Mirror |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Sierra,Sierra HD,Silverado,Silverado HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 1999,2000,2001,2002,2003,2004,2005,2006,2007 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
Compatibility
1999-2007 (classic body style) GMC® Sierra, Chevy® Silverado pickup trucks with factory equipped OnStar®.
MIRROR NOTES: Though this mirror has the OnStar® buttons on it, it will not add OnStar® to any vehicle unless it came equipped with that feature from the factory. Existing mirror must not have passenger airbag indicator light. If you have a passenger airbag light in your mirror this kit is not recommended. If your vehicle has a factory temperature sensor it will need to be replaced with the included sensor.
Installation
Bracket assembly will bolt into your existing tailgate handle. You will be required to drill two 1" holes; one in the bottom of the tailgate and the other in the back of the bed for cable passage (drill bit is not included). Wiring is long enough to get you into the cab on all vehicles so all connections can be made to the interior junction block for maximum corrosion avoidance.
You will need to locate a 12 volt accessory power source, reverse power source, and ground for installing the camera and mirror.
Mirror will replace your factory OnStar® mirror with no loss of functionality. Harness is included for temp probe and video for the camera connection.
