Backup Camera kit for 4.2" Display, Fits 2013-2018 Taurus, Fusion, Flex, Escape

Backup Camera kit for 4.2" Display, Fits 2013-2018 Taurus, Fusion, Flex, Escape

SKU#: CS-FCRa-MYT42F

Availability: In Stock
SKU#: CS-FCRa-MYT42F
$398.00

Quantity

For 4.2" factory display!

Description

This is a high quality OEM integrated backup camera solution for your new style Ford® Taurus with 4.2" radio display screen! This kit is plug and play into the back of the screen so no cutting or splicing into the vehicle electrical system is required!  In addition, no dealer programming is required making this a simple OEM integrated solution for your Taurus!  The camera can be mounted on the license plate or it also comes with a mini mount that will allow you to mount the camera to the ledge above the license plate if you choose.

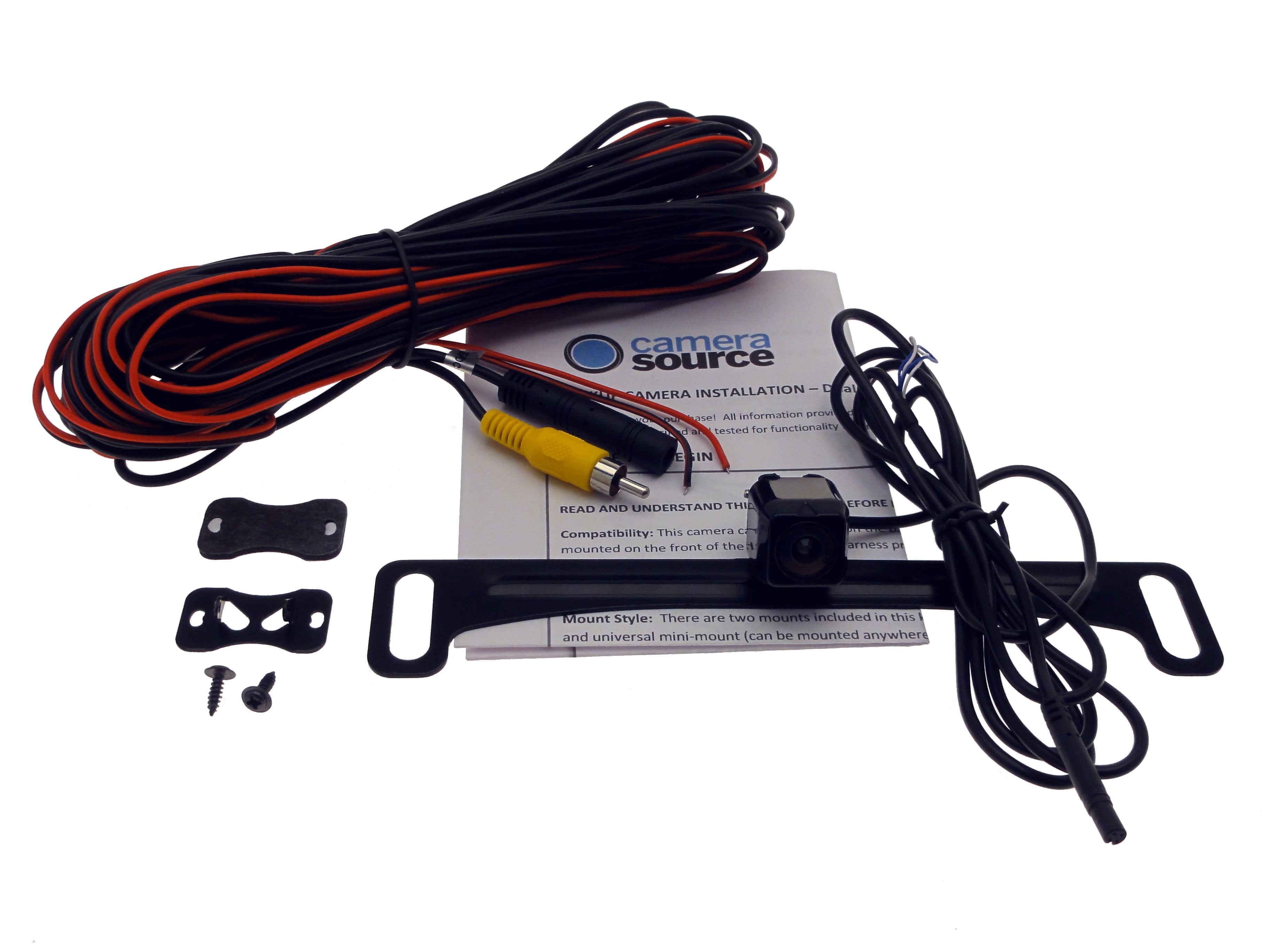

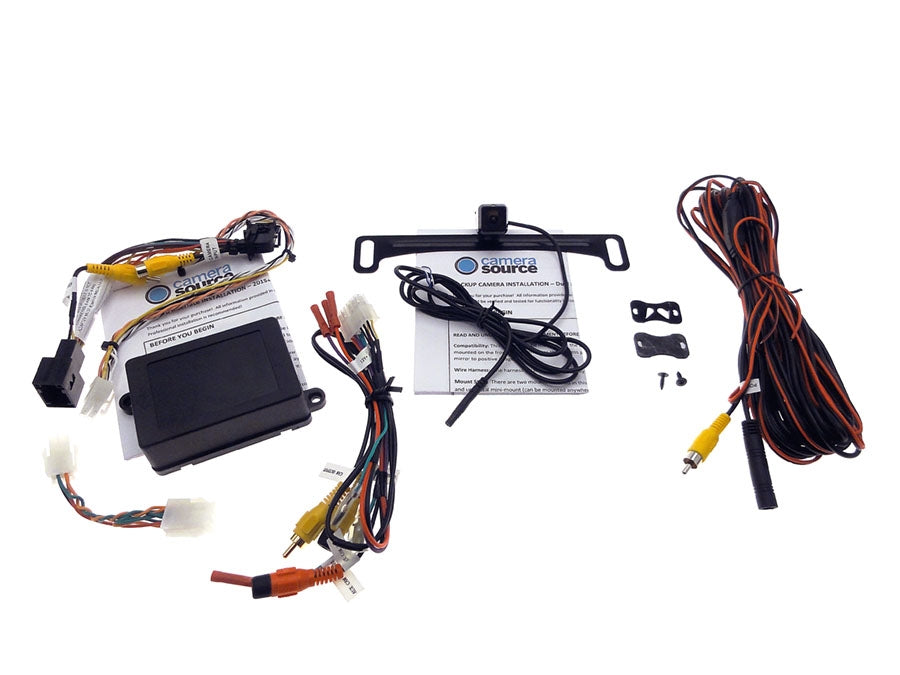

Kit includes:

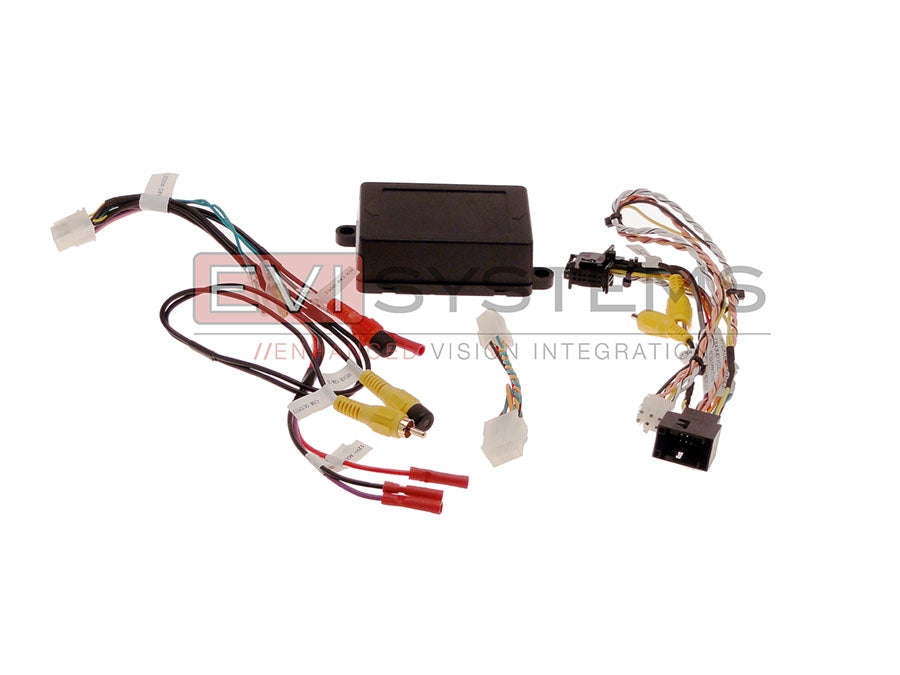

  • 4.2" Factory display interface module - plug and play and no dealer flashing required!  Interface also includes an option for front camera (front camera not included).

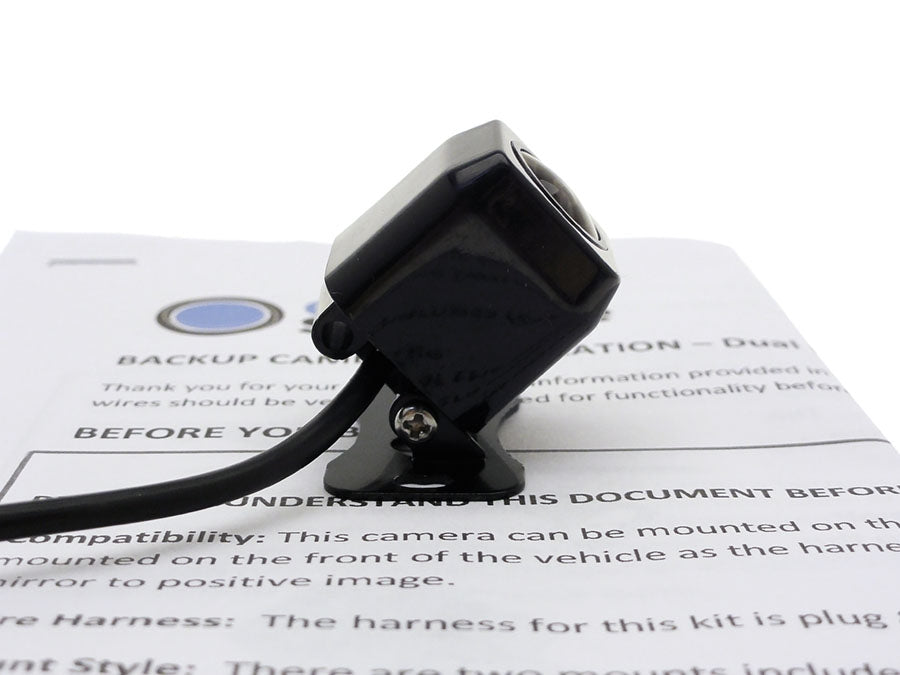

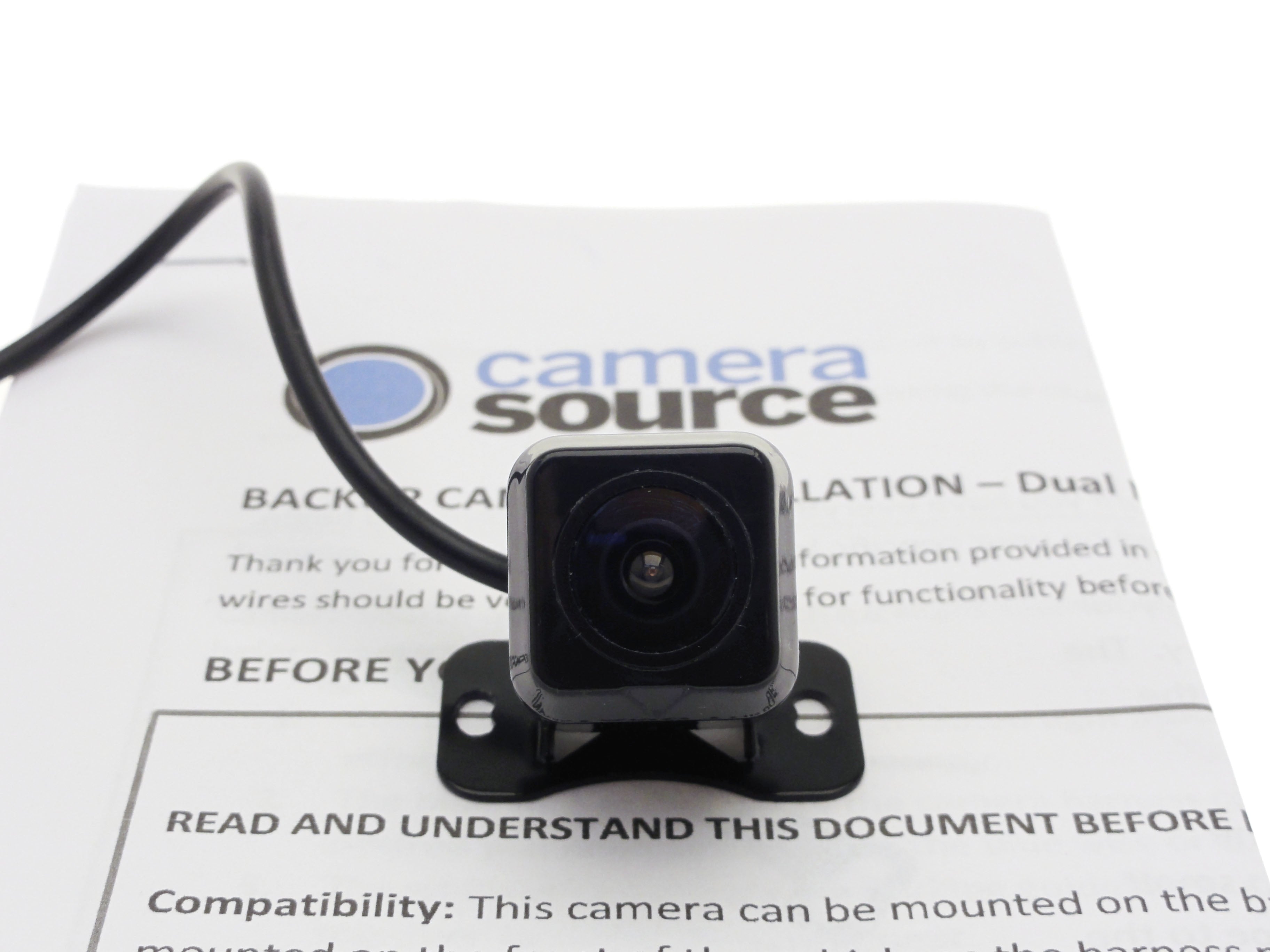

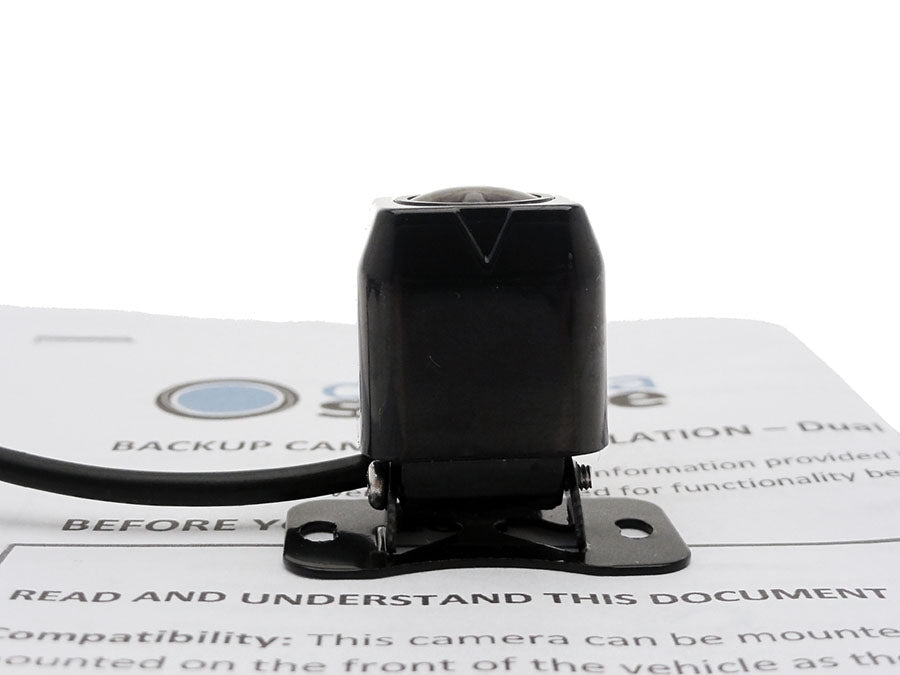

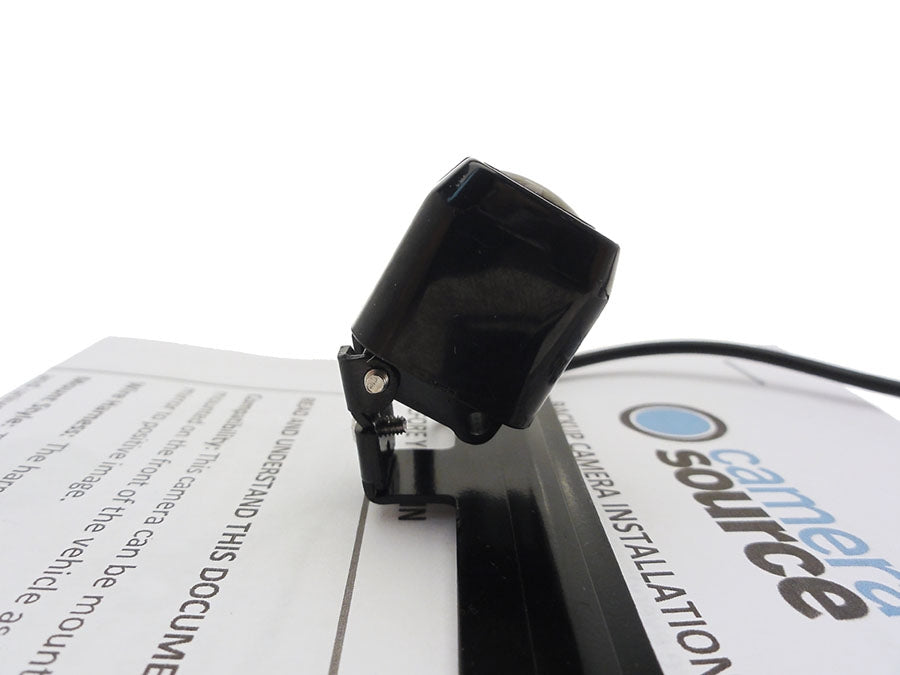

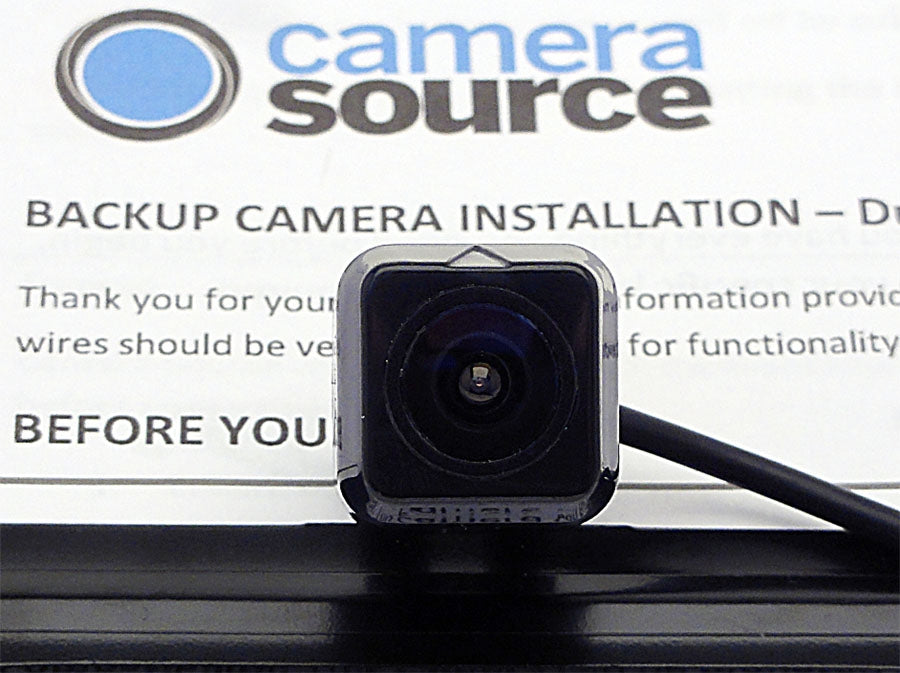

  • Dual mount camera system with high grade Super CMOS sensor for an ultra clear view, mount on license plate or lip mount as desired
  • Wire connectors for connecting camera to included 4.2" screen interface
  • Zip ties
  • Installation instructions

Camera Specifications:

  • Camera Source exclusive Super CMOS high grade sensor with night vision

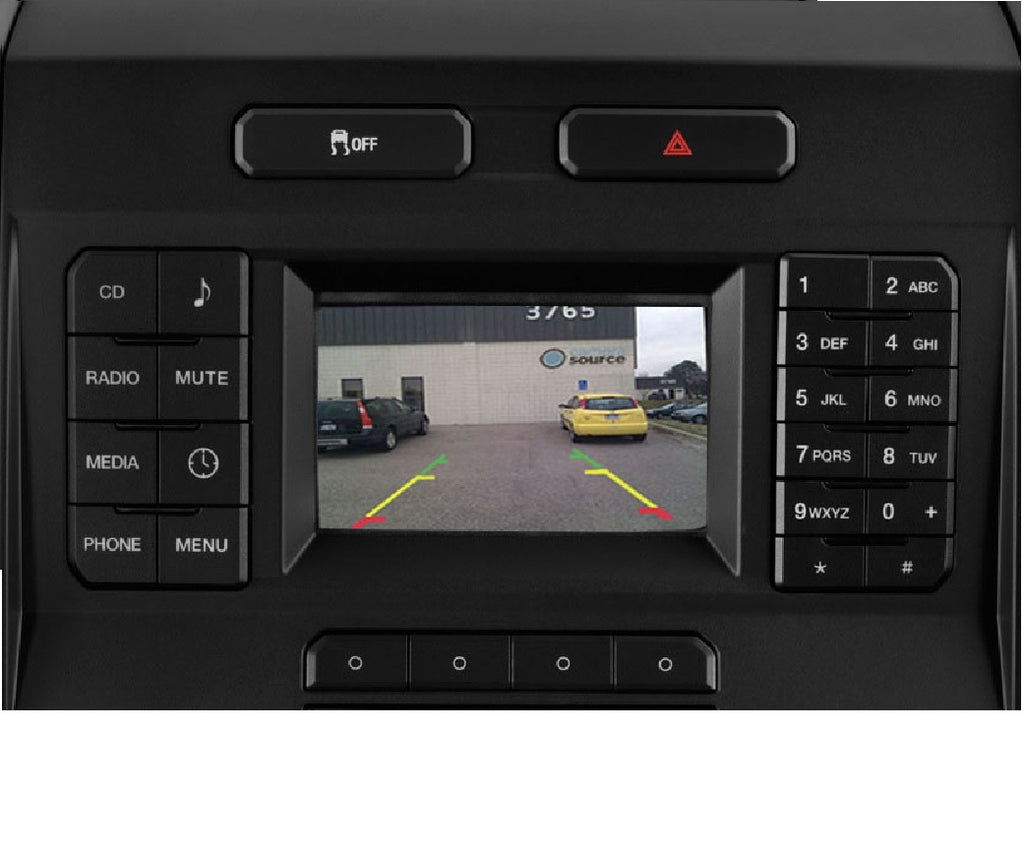

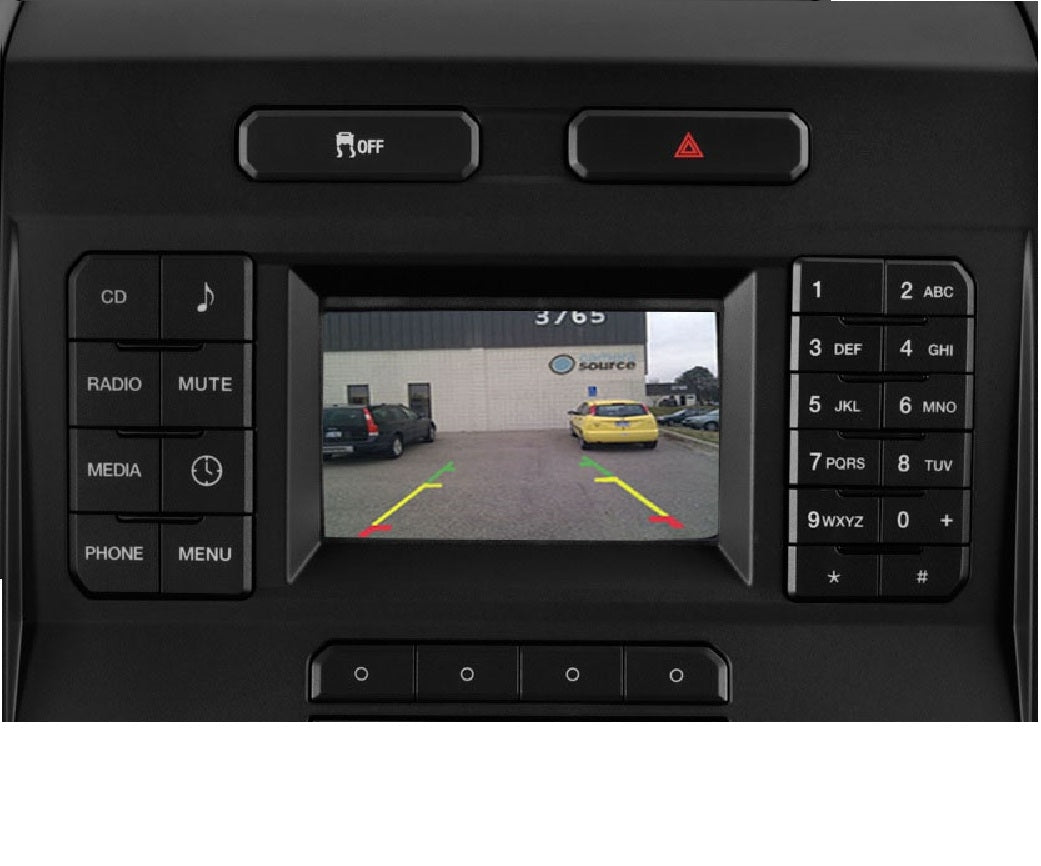

  • Selectable parking guidelines (can be turned off if desired)  NOTE: Black center line is not present on actual display
  • 600 TV lines of resolution
  • <.2 lux minimum illumination - Outstanding night vision!
  • 170 degree viewing angle

Everything you need to install is included.



No monitor is included with this kit as it is designed to work with your existing 4.2" radio screen.  This camera and interface module come with a 3 year warranty and is guaranteed to fit or your money back. Professional installation is recommended.

Specifications
System Manufacturer EVI Systems
Number of Cameras 1
Camera Resolution 600 TVL
Camera Type Rear Camera
For a monitor it uses Your factory display
Fit Type Universal fit
Connection Plug and Play to Factory Dash Display
Make Ford
Camera Mount Location Factory Tailgate
Night Vision < .2 Lux
Camera Orientation Rear Facing
Parking Guidelines Selectable on/off
Power Supply 12 Volts
Radio Screen Size 4.2” Ford
Reason for Shopping Adding camera(s)
Sensor Type Super CMOS
Vehicle Interface Includes Factory Integration Module
Vehicle Category Car
Camera Input Ports 2
Video System NTSC
Viewing Angle 170 Degrees
Model Taurus,Escape,Fusion,Flex,Mustang
Warranty 3 Year
Waterproof/Dustproof Level IP 68 Camera
Wiring Type Hard Wired
Year 2013,2014,2015,2016,2017,2018
Make Filter Ford
Model Filter Escape, Flex, Fusion, Mustang, Taurus
Year Filter 2013, 2014, 2015, 2016, 2017, 2018
Compatibility

This kit will fit the following vehicles with the 4.2" display screen in the radio:



2013-2018 Taurus

2013-2018 Fusion

2013-2018 Flex

2013-2018 Escape

This kit is designed to mount above your license plate and interface your radio screen directly.



COMPATIBLE DISPLAYS  (You must get this number from the back of the radio).



BB5T-19C116-CK DT4T-19C116-CA
BT4T-19C116-CP DT4T-19C116-CB
CB5T-19C116-CC DT4T-19C116-CC
CB5T-19C116-CD DT4T-19C116-CD
CB5T-19C116-GC DT4T-19C116-GB
CB5T-19C116-GD DT4T-19C116-GD
CK4T-18B955-CF EA8T-18B955-CB
CM5T-18B955-CF EB5T-18B955-GA
CM5T-18B955-GB EB5T-18B955-GC
CM5T-18B955-GD EB5T-19C116-CA
CM5T-18B955-GE EB5T-19C116-CD
CM5T-18B99-GG EG1T-18B955-CA
DA8T-18B955-CD EG1T-18B955-CD
DA8T-18B955-CF EJ5T-18B955-CC
DB5T-19C116-CA EJ5T-18B955-GA
DB5T-19C116-CBT EL3T-18B955-CE
DB5T-19C116-GA EM5T-18B955-CF
DB5T-19C116-GB EM5T-18B955-JB
DG1T-18B955-CD ES7T-18B955-CA
DL3T-18B955-CC ES7T-18B955-CB
DL3T-18B955-CD ET4T-18B955-CC
DL3T-18B955-CF ET4T-19C116-GG
DL3T-18B955-CG FB5T-19C116-CA
DS7T-18B955-CE FB5T-19C116-GA
DS7T-18B955-CF FG1T-18B955-CA





INCOMPATIBLE DISPLAYS


BB5T-19C116-CJ
BT4T-19C116-CN
CE8T-18B955-AA
CE8T-18B955-AD
CJ5T-18B955-GC
CJ5T-18B955-GE
CJ5T-18B955-GF
CM5T-18B955-AB
CM5T-18B955-AD
CM5T-18B955-CE
CM5T-18B955-GF
CM5T-18B99-AD
D2BT-18B955-BE
DA6T-18B955-BB
DM5T-18B955-CD
EJ5T-18B955-GB
EM5T-18B955-CA
EM5T-18B955-CB

Installation

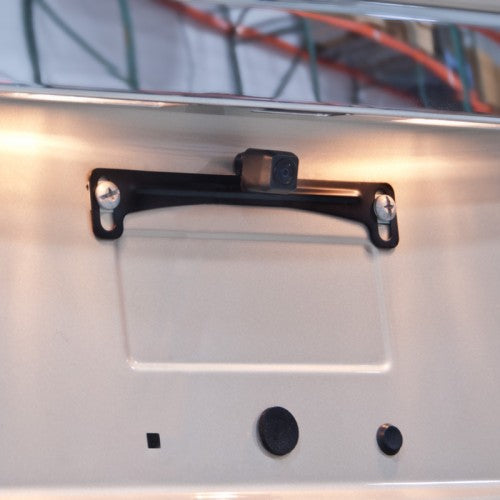

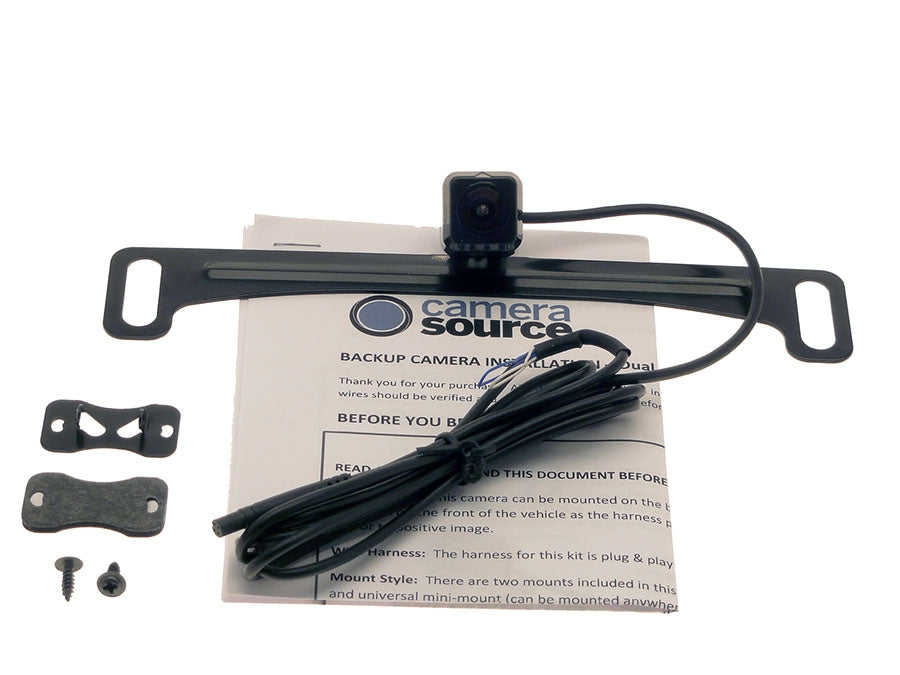

Install on either your license plate mount or on any flat surface - comes with two brackets.
The interface module is plug and play with your factory radio.  The interface module powers the camera, creates the RCA connection for the camera, and programs the radio.  NO splicing of factory wiring!
