Complete camera kit includes a 10" AHD Quad monitor, one 1080P AHD rear camera, and two 960P AHD side cameras for maximum visibility and easy 3 camera quick disconnect trailer cable!

This complete kit contains everything you need to wire a vehicle for three total cameras and connect to the included 10" High Definition quad monitor.

This kit includes the following:

• (1) 10" AHD Quad monitor
• (1) AHD commercial grade rear view camera with Sony sensor and night vision - 1080 TV lines of resolution, 0 LUX, 150 degree view

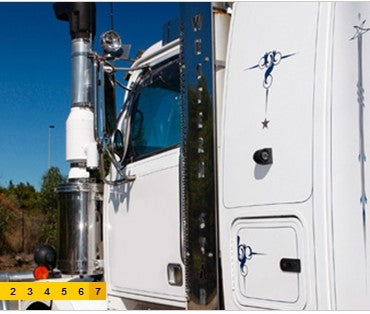

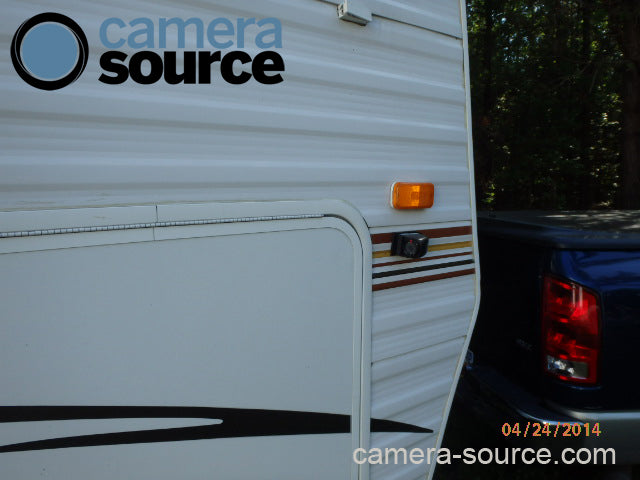

• (2) AHD commercial grade side view cameras with Sony sensors and night vision, 960 TV lines of resolution, 0 LUX, 120 degree view
• 32' 4 pin coaxial camera cables (2)
• 64' 4 pin coaxial camera cable (for rear camera)

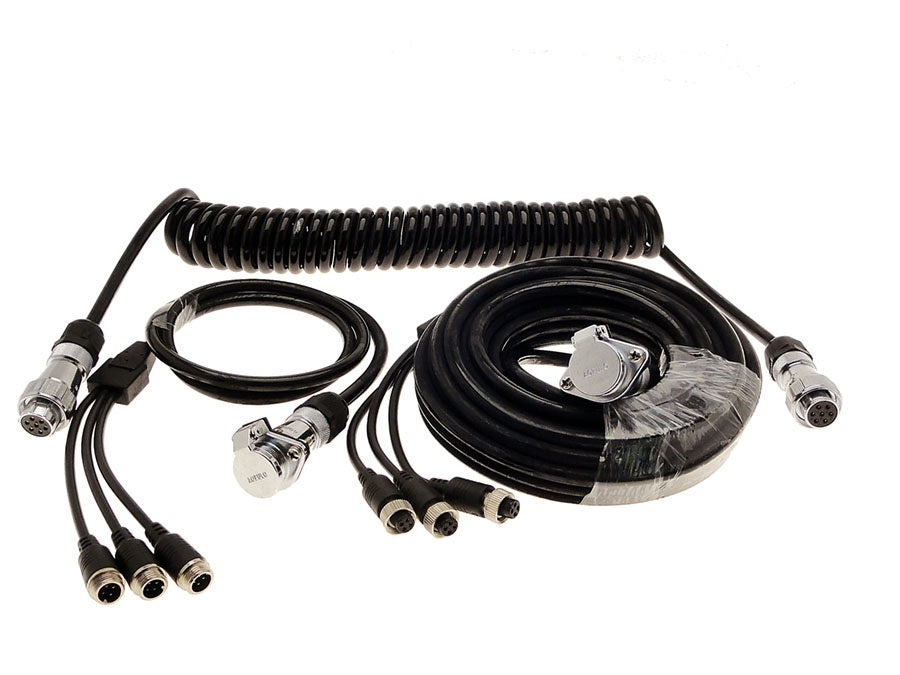

• Includes 3 cam trailer quick disconnect system to allow you to disconnect your trailer with ease by making the camera connections as simple as unplugging the lights of the trailer.
• 1 year warranty on everything!

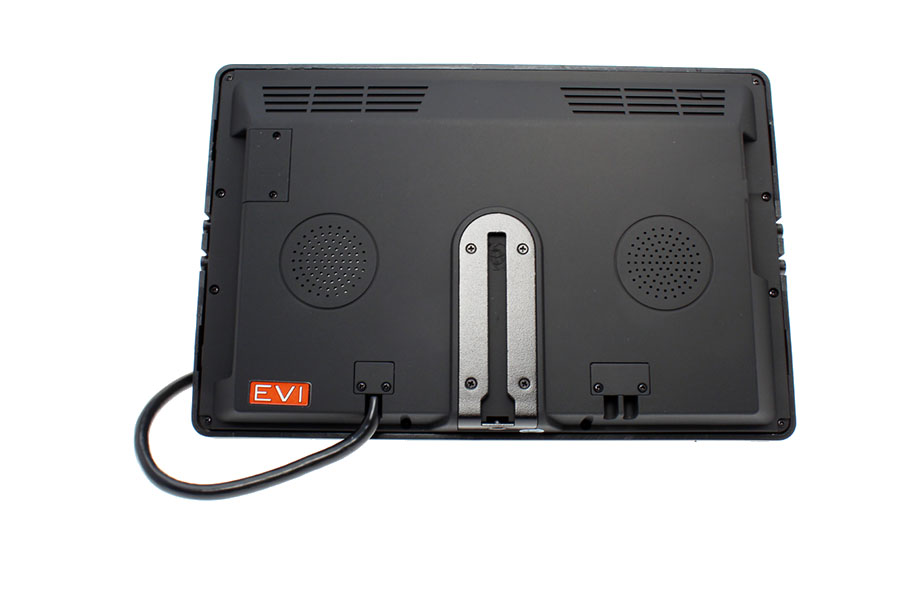

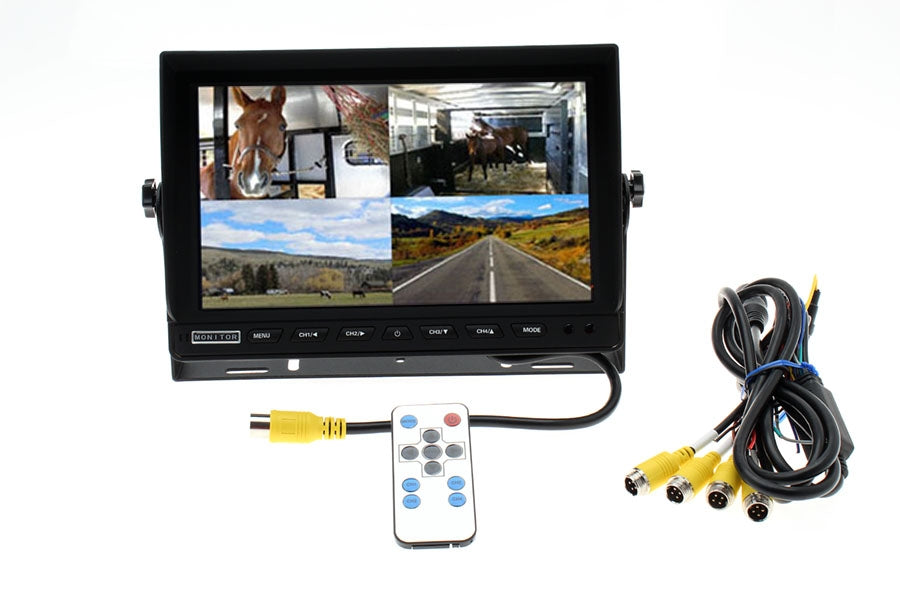

Monitor specs:

• screen size: 10 inch (diagonal length)
• Built-in quad display
• 16 : 9 wide screen display
• NTSC
• 1024x600 resolution
• Power supply is DC 12 V/24V compatible

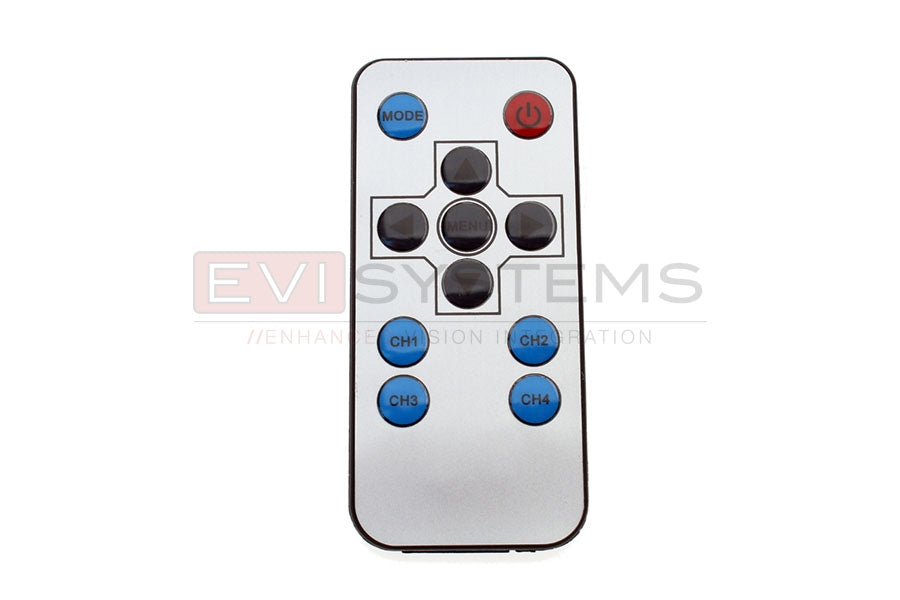

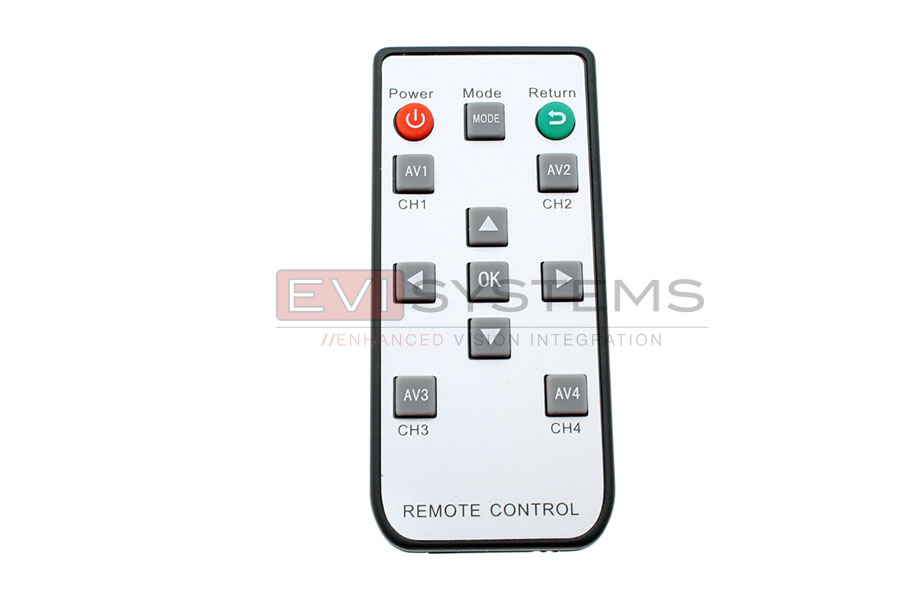

• Remote control, OSD menu;
• Inputs for up to 4 cameras

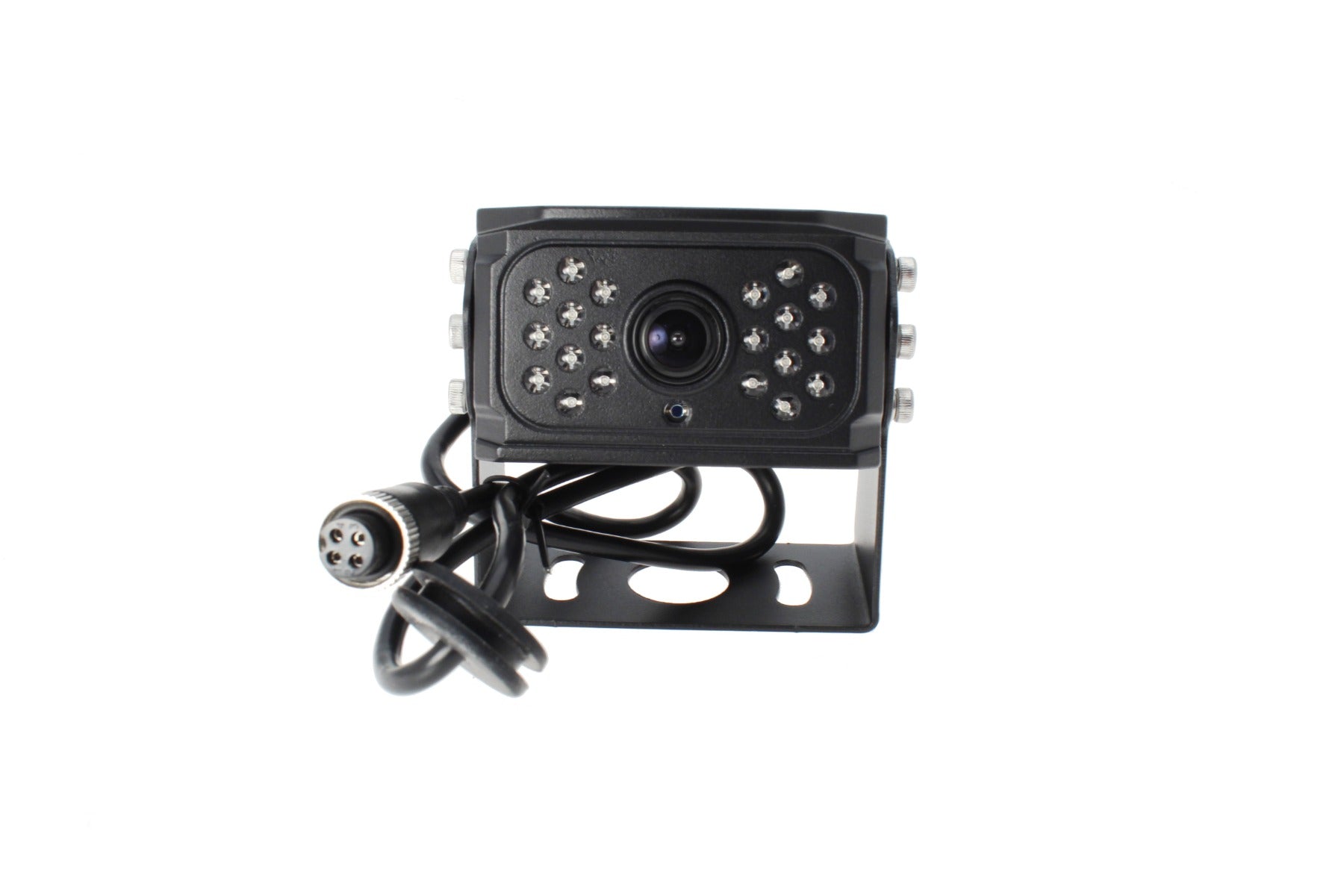

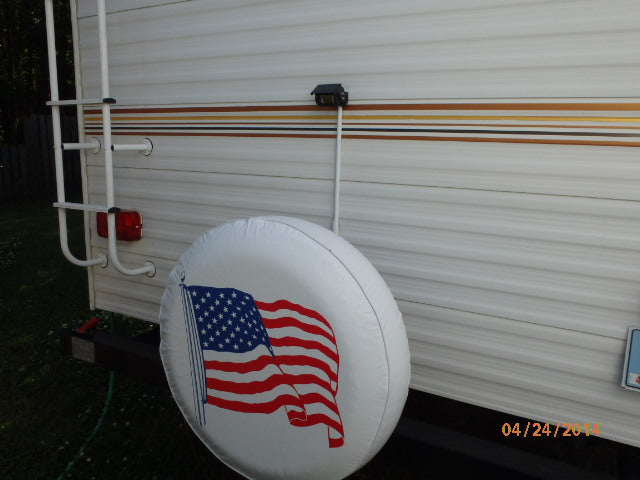

Rear Camera specs:

• Analog High Definition
• 1080P resolution- 19201080 pixels!
• 150 degree view
• 20 IR LED's for clear night vision even in complete blackness
• Weather grommet for easy cable passage to the interior
• Rear camera-Steel weather tight casing with IP69 water resistance
• Weather tight screw connectors for extremely secure and dry connections

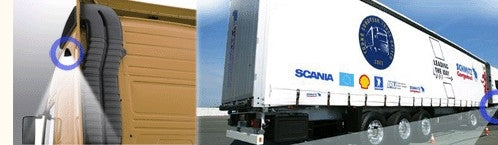

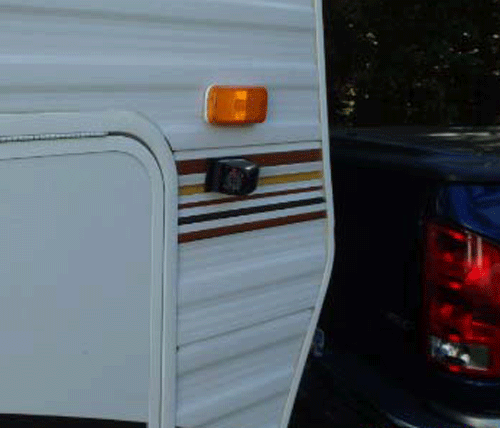

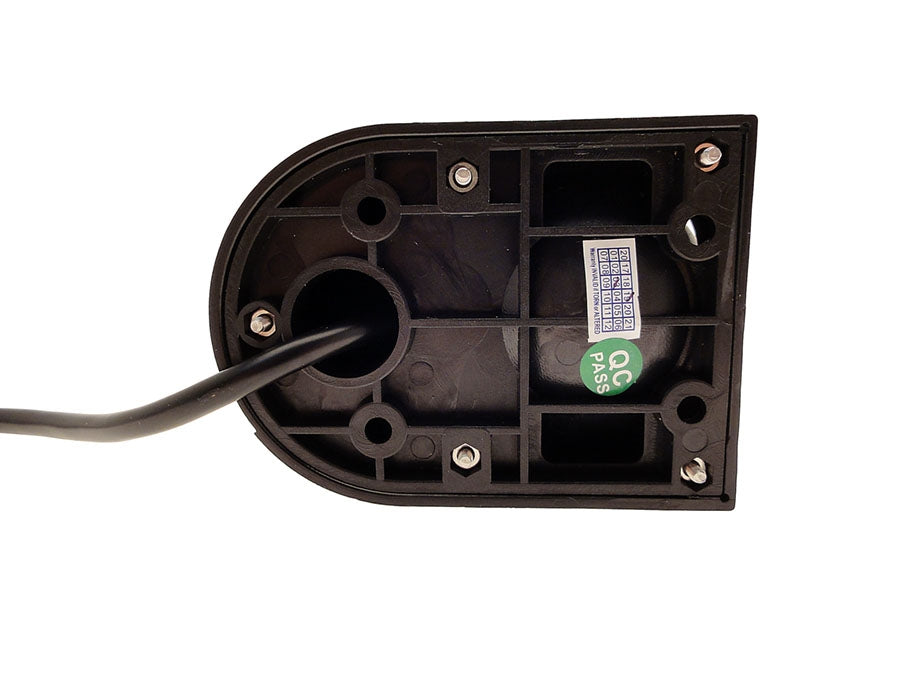

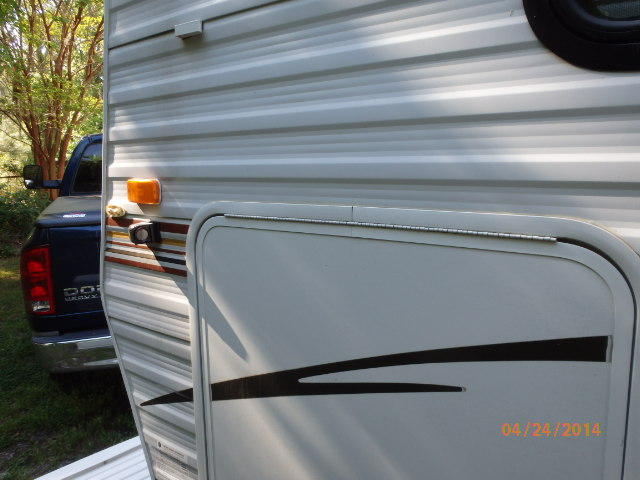

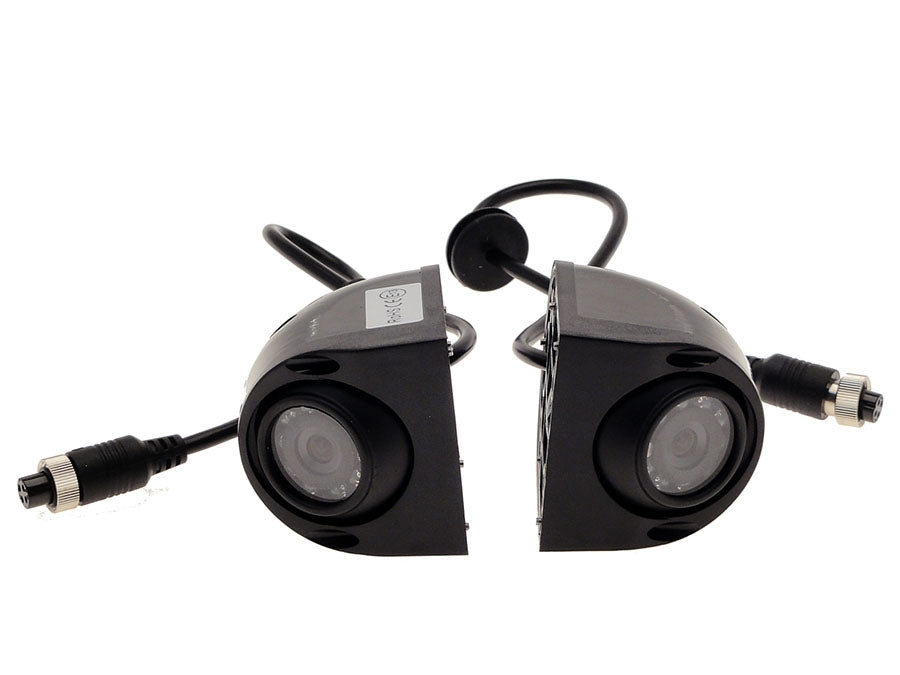

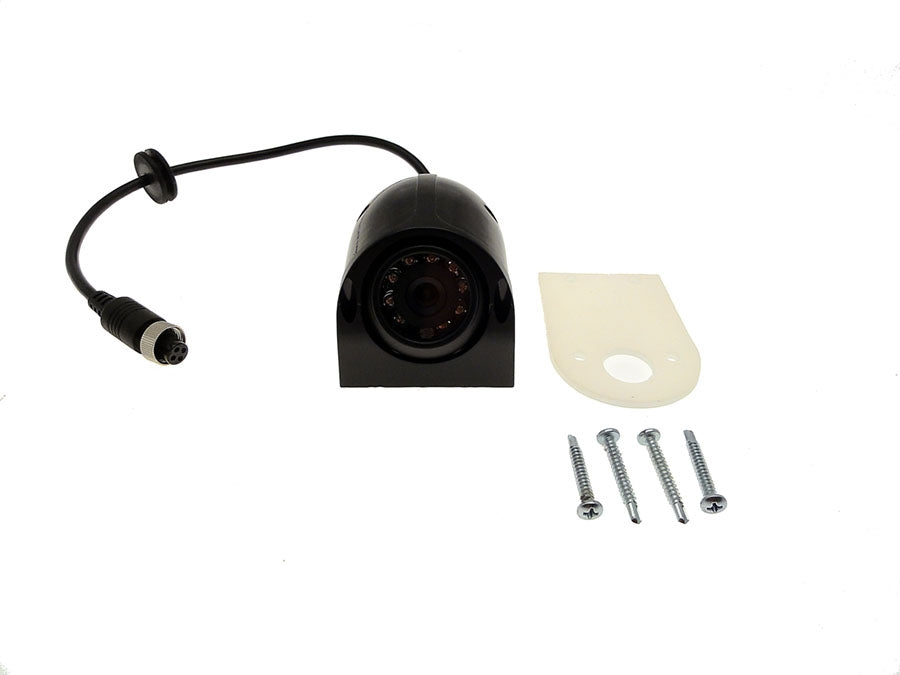

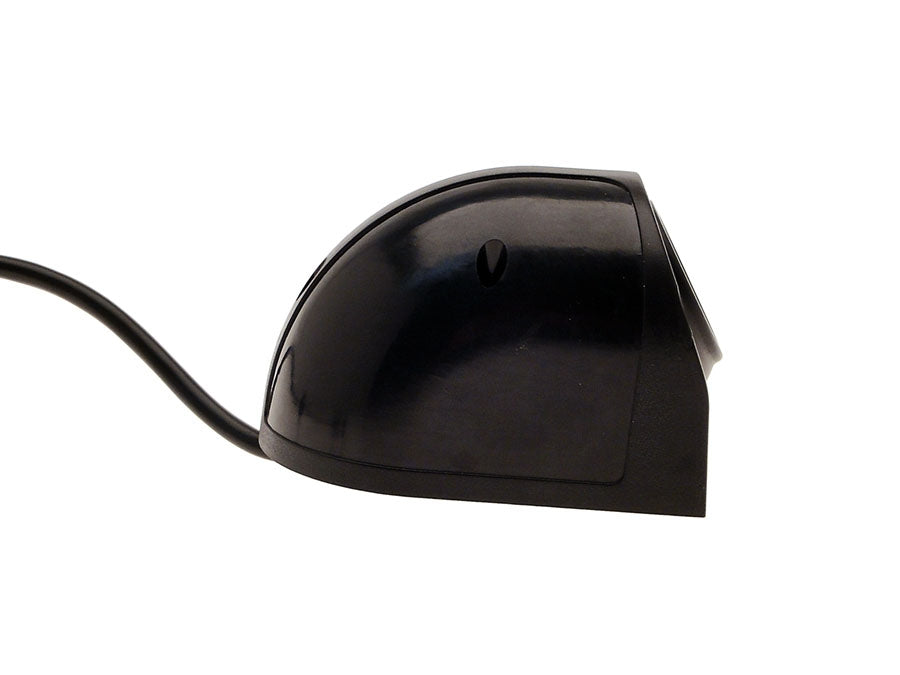

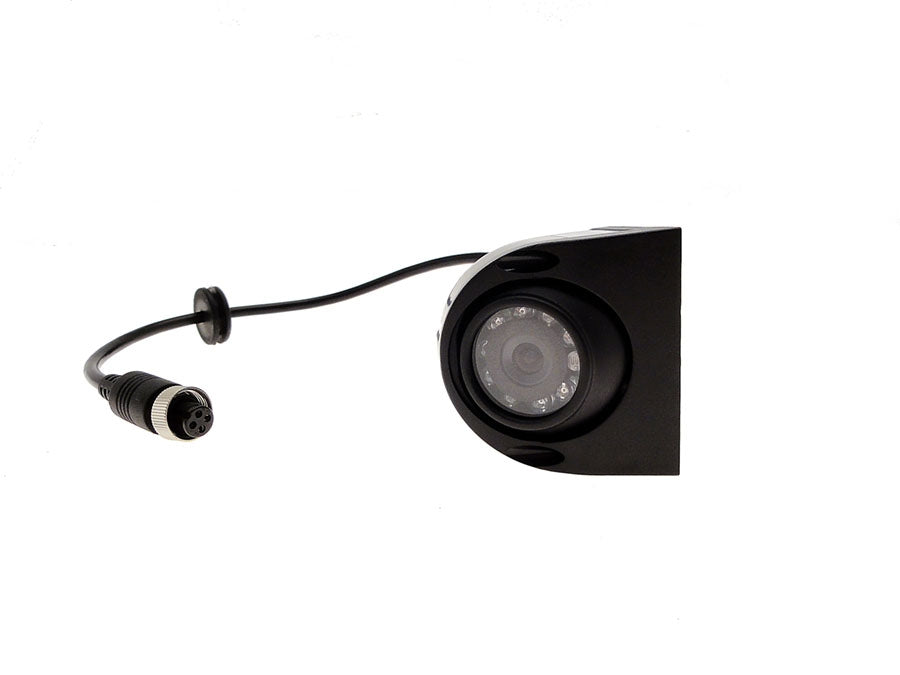

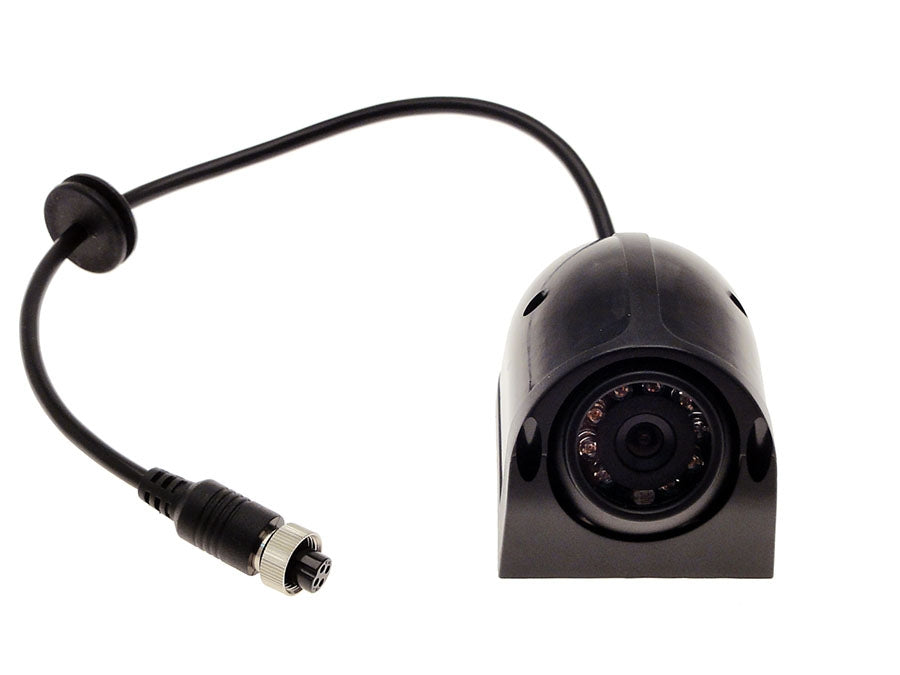

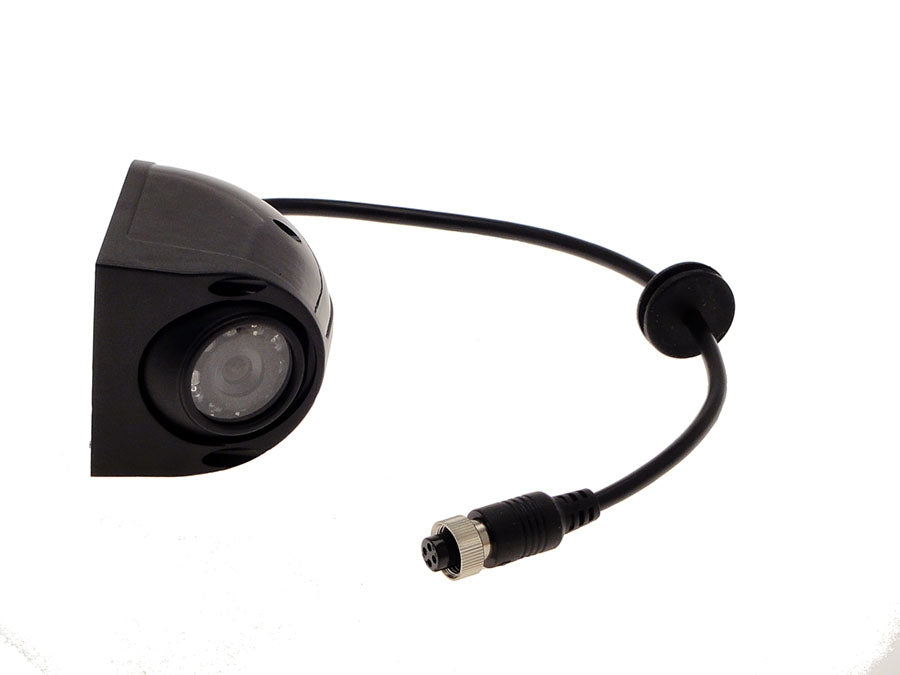

Side Camera specs:

• 1/3” APTINA CMOS- Analog High Definition
• 960x1280 resolution!
• 9 Infrared LED's to allow vision in complete darkness
• 120 degree view
• Side camera-Adjustable view- Mount upright, sideways, upside down.
• Durable weather tight casing with IP68 water resistance
• Weather tight screw connectors for extremely secure and dry connections
• 1 year warranty

Warranty Information Camera Source warrants this product against material defects for a period of one (1) year from the date of purchase. Camera Source is not responsible for a defect in this system as a result of misuse, improper installation, damage or mis-handling of the electronic components. Most issues can be resolved over the phone or by email so please contact us before returning any items.
